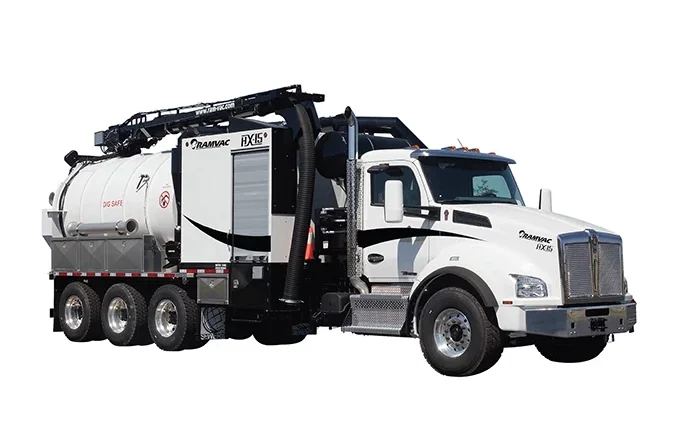

RAMVAC HX-15 Hydro Excavator Truck

The RAMVAC HX-15 is the “Big Daddy” of the RAMVAC family. However, you do not have to compromise for that size. We still feature a footprint 36” shorter and a payload capacity 2500 lbs greater than our competitors. This tridem axle configuration unit offers a 15-cubic-yard debris body. Also, it offers a boom reach of 21 to 26 feet with a 320° working radius. The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity. Additionally, it contains the ability to do 5400 CFM and 28″ blower, well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. Also, for the water system, this hydro-vac truck features a 1,300-gallon water capacity. Moreover, it contains a 10 GPM @ 2500 PSI pump, 400,000 BTU water heater, all in an 80,000 BTU heated enclosure.

Additionally, the HX-15 boasts compact footprints, NEMA rated electrical systems, debris blow-off systems, and fully hydraulic power trains for superior reliability. For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit. All these features combined with a parts and service network that is available 24/7 make it clear why RAMVAC is the best value for your equipment needs today!

Features:
Length 40′
Width 8’6″
Height 13″1″
GVWR 88,000 lbs
Boom Reach 21′ – 26′
Capacity 15 yd
Min HP 425 hp
Axle Configurations Tri Axle

---

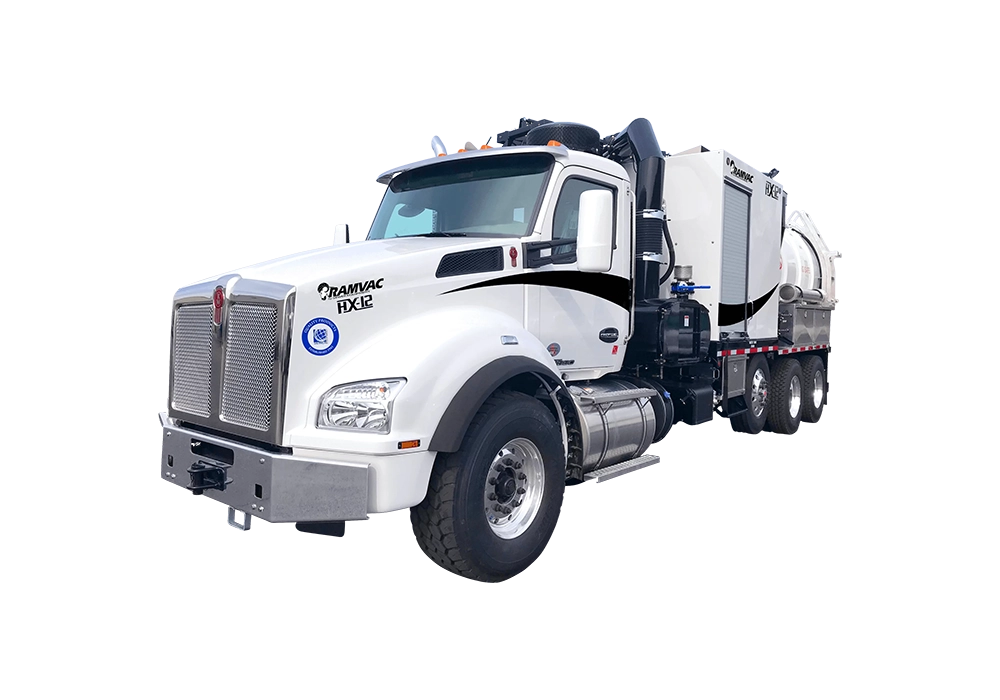

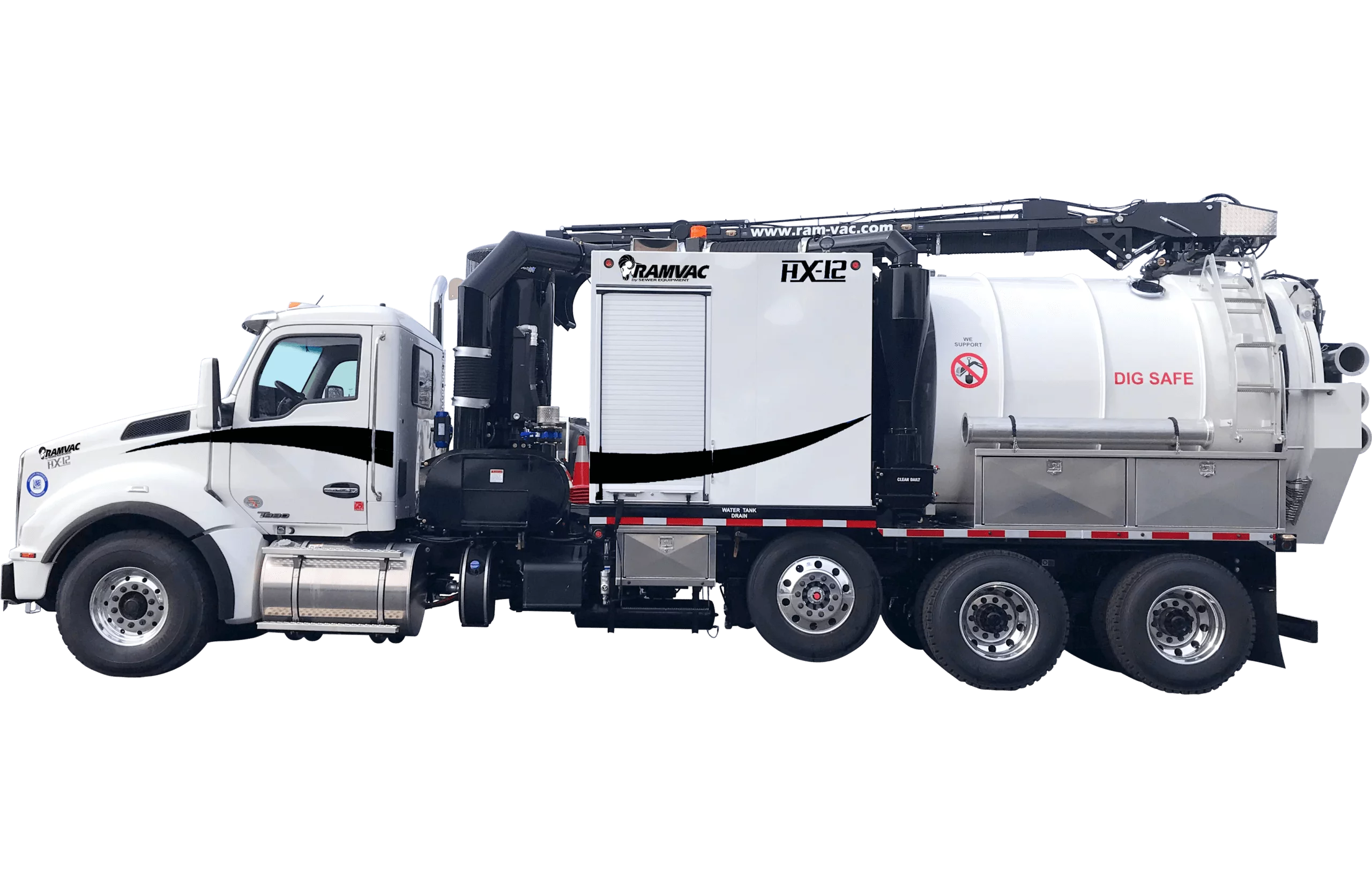

RAMVAC HX-12 Hydro Excavator Truck

The mainstay of the RAMVAC family!  We feature a footprint 36” shorter and a payload capacity 2500 lbs greater than our competitors. This tandem-axle configuration unit offers a 12-cubic-yard debris body. Also, it contains a boom reach of 18 to 23 feet with a 320° working radius. The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity. Moreover, these features have the ability to do 5400 CFM and 28″ blower. Additionally it includes cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, the HX-12 features a 1,300-gallon water capacity, a 10 GPM @ 2500 PSI pump and a 400,000 BTU water heater all in an 80,000 BTU heated enclosure.

The HX-12 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems and fully hydraulic power trains for superior reliability.  For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit.  All these features combined with a parts and service network that is available 24/7  makes it clear why RAMVAC is the best value for your equipment needs today!

Features:
Length 38′
Width 8′
Height 13’1″
GVWR 79,200 lbs
Boom Reach 18′ – 23′
Capacity 12 yd
Min HP 425 hp
Axle Configurations Tandem, Pusher or Tri Axle

---

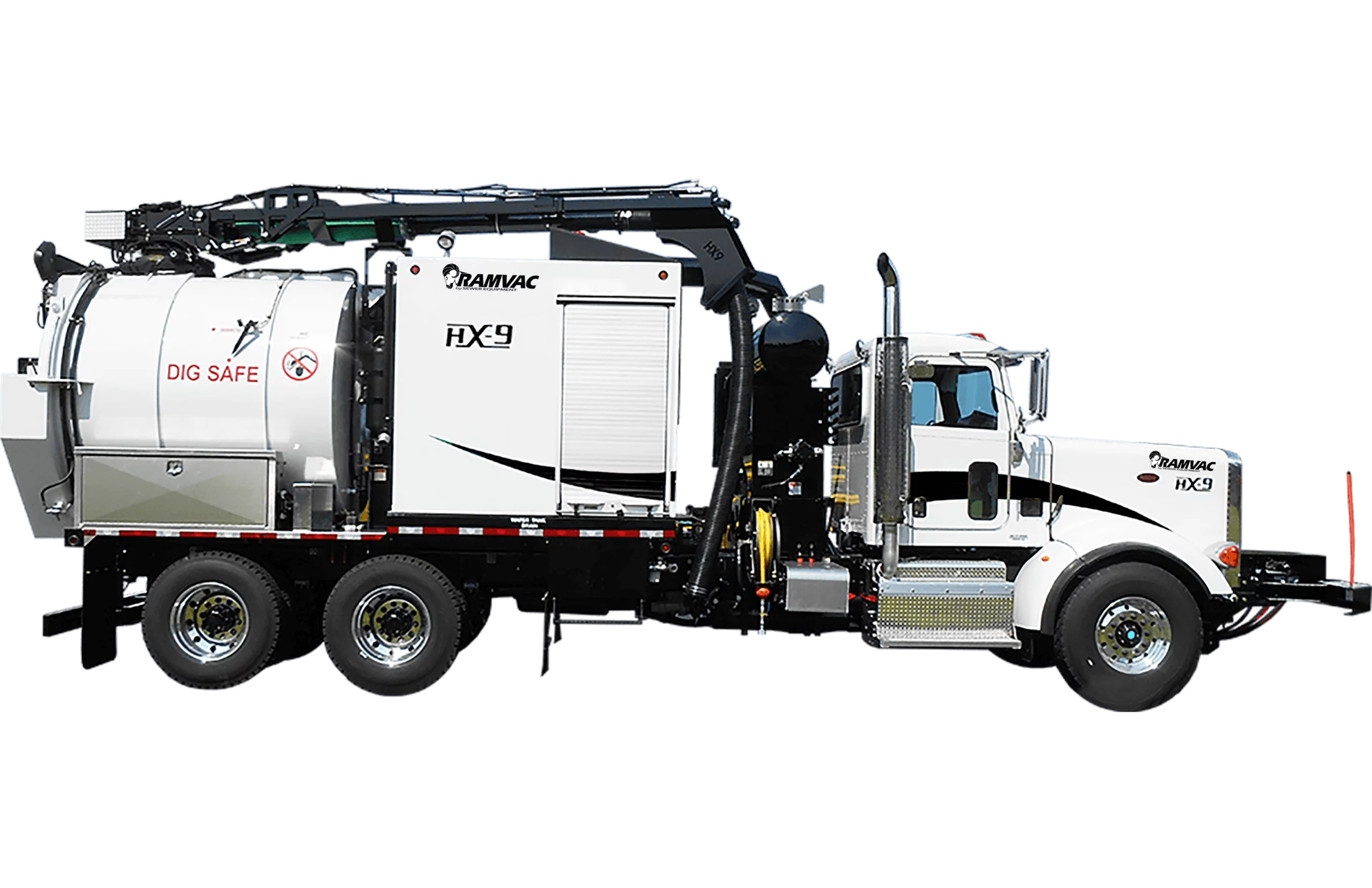

RAMVAC HX-9 Hydro Excavator Truck

The smallest unit in the RAMVAC family of full-size hydro excavators. These units are equipped with large productivity features. This tandem axle configuration unit offers a 12-cubic-yard debris body, a boom reach of 15 to 20 feet with a 320° working radius. The 8″ vacuum system for these units feature a 4400 CFM and 18″ blower capacity, with the ability to do 5400 CFM and 28″ blower, well as cyclone separation, a vacuum enhancer, directional discharge, hydrostatic blower drives, and a 10-micron final filter. For the water system, the HX-9 features a 1,300-gallon water capacity. Additionally it features a 10 GPM @ 2500 PSI pump and a 400,000 BTU water heater all in an 80,000 BTU heated enclosure.

The HX-9 also boasts compact footprints, NEMA rated electrical systems, debris blow-off systems, and fully hydraulic power trains for superior reliability.  For customers looking to dig with air, you have the option to add a 185 CFM @ 150 PSI air compressor to your unit.  All these features combined with a parts and service network that is available 24/7  makes it clear why RAMVAC is the best value for your equipment needs today!

Features:
Length 35′
Width 8′
Height 13’1″
GVWR 66,000 lbs
Boom Reach 15′ – 20′
Capacity 9 yd
Min HP 425 hp
Axle Configurations Tandem, Pusher or Tri Axle
