RamVac Mid-Size Hydro Excavation Truck

The Power of Precision With Sewer Equipment RAMVAC Mid-Size Hydro Excavation Trucks

Introducing the cutting-edge RAMVAC Mid-Size Hydro Excavation Trucks – setting new standards in sewer equipment for enterprises that demand peak performance. Tailored for the rigors of the construction, municipality, and utility sectors, our innovative selection of trucks redefines productivity and durability in the field.

Unrivaled Capacity, Engineered with Precision

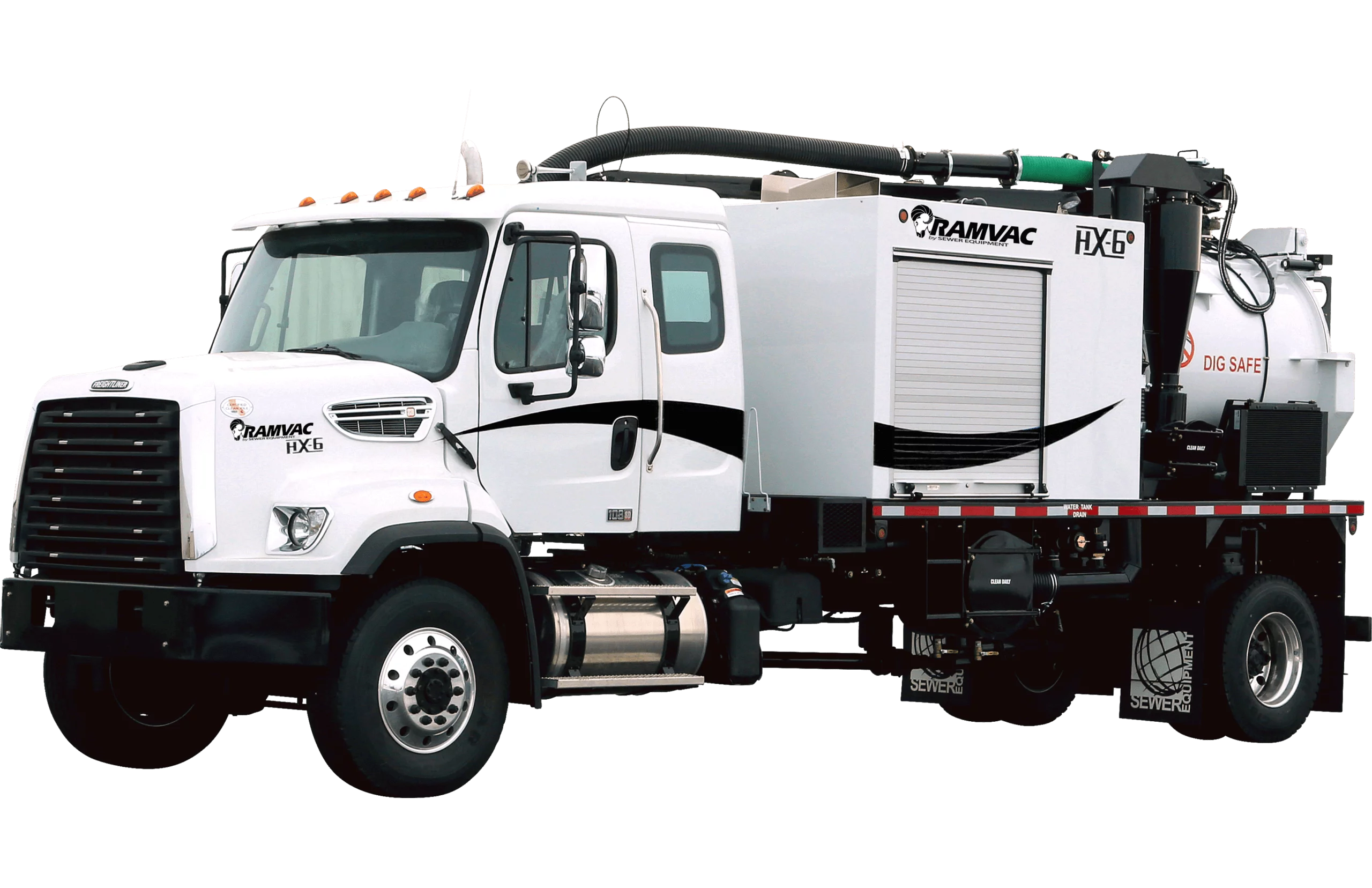

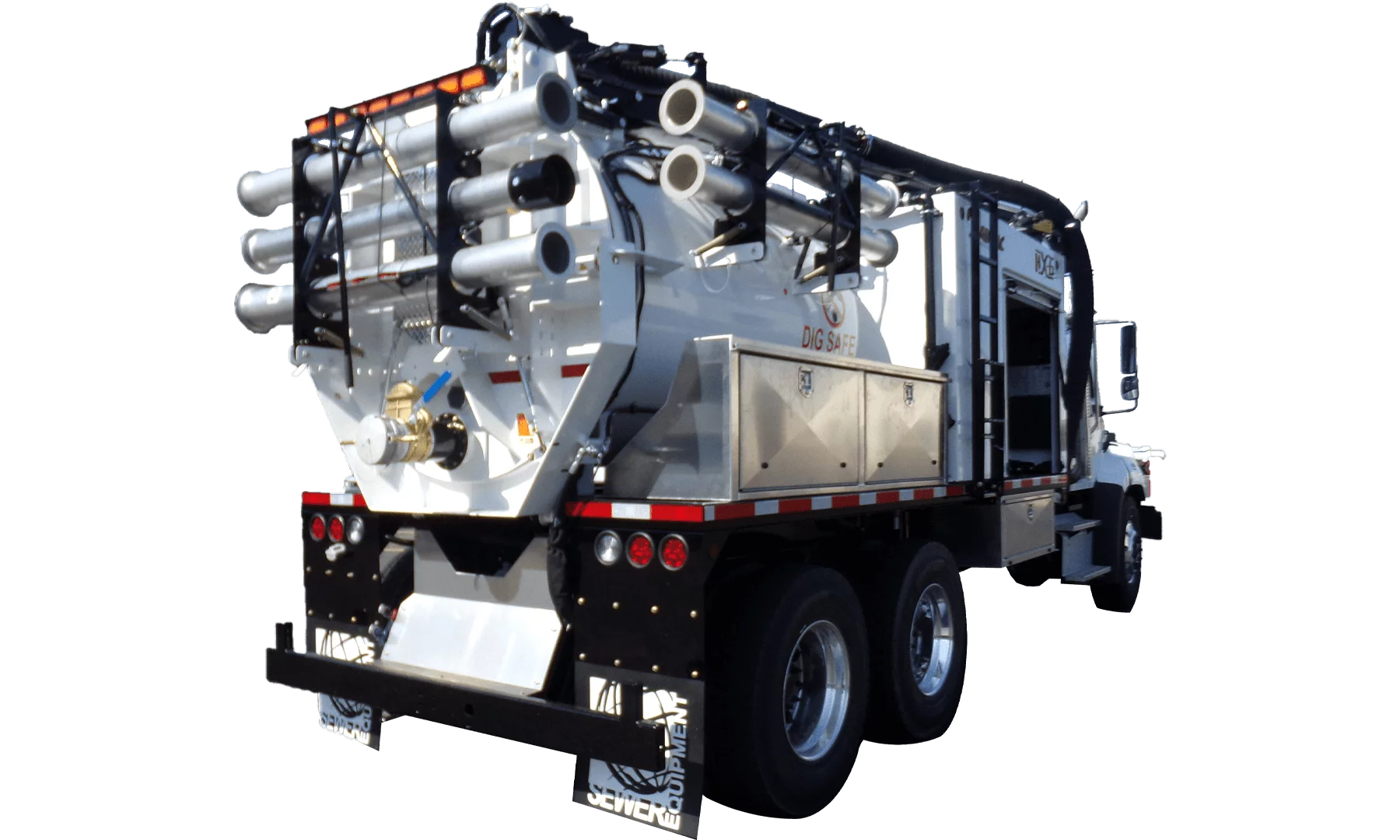

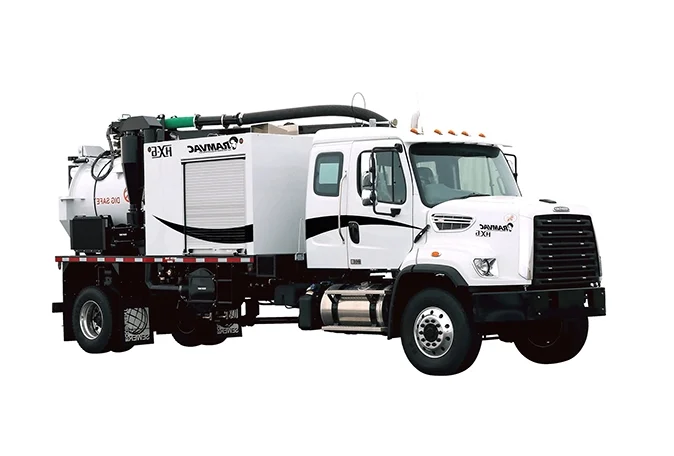

The RAMVAC HX-6 Hydro Excavation Truck is a testament to ingenuity, featuring a profound 6 cubic-yard debris body and revolutionizing boom reach spanning 13 to 18 feet. Boasting a 320-degree working radius and a state-of-the-art 6″ vacuum system with 3000CFM, the HX-6 is the epitome of versatility, agility, and unyielding suction power.

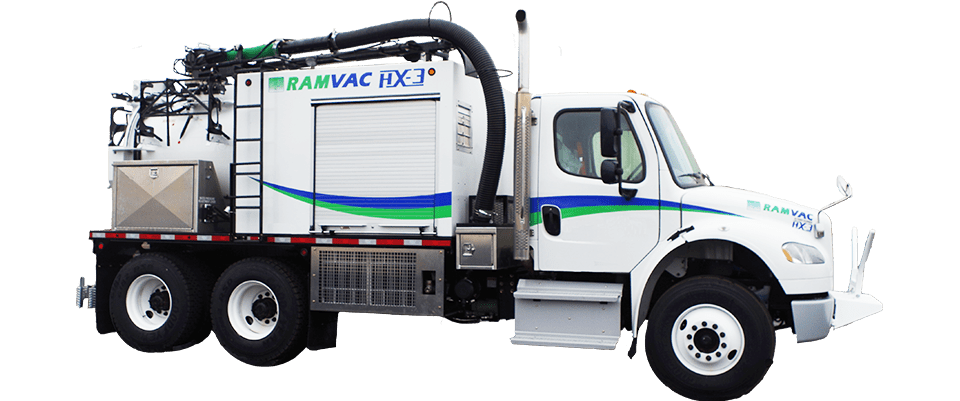

Not to be outdone, the RAMVAC HX-3 may be the smallest in our fleet, but its 3 cubic-yard debris body punches well above its weight. With a 320-degree working radius and a 3000CFM 6″ vacuum system, it delivers uncompromising performance in a compact footprint, designed to navigate tight urban environments without sacrificing capacity.

Both models feature a 10-micron final filter, directional discharge for precision control, and rock-solid hydrostatic blower drives. High-quality construction and reliable NEMA-rated electrical systems ensure these trucks are as resilient as they are powerful, withstanding the toughest terrain with grace.

Enhanced Water System Capabilities

300-gallon and 650-gallon water capacities for the HX-3 and HX-6, respectively, ensure an uninterrupted workflow. Equipped with 10 GPM @ 2500 PSI pumps and a 400,000 BTU water heater, the trucks offer sustained pressure and temperature for superior soil extraction. The integrated 80,000 BTU heated enclosure safeguards against freezing, making these trucks a reliable asset, even in the harshest climates.

Maneuverability Meets Unmatched Reliability

On the technology front, both trucks feature a debris blow-off system that prevents clogging, keeping maintenance a breeze. The RAMVAC fleet provides dependable performance with fully hydraulic powertrains, while the optional 185 CFM @ 150 PSI air compressor secures versatility for air excavation projects.

Additional Information

Catalog Item Spec Sheet:
