STATIONARY TRASH COMPACTORS

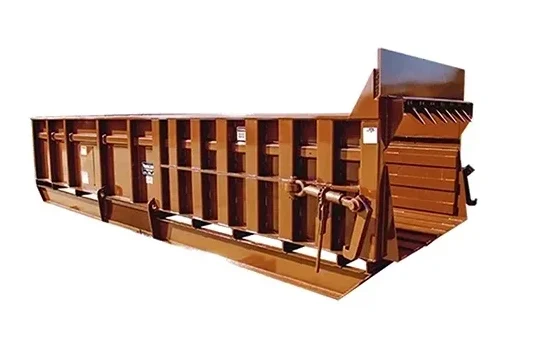

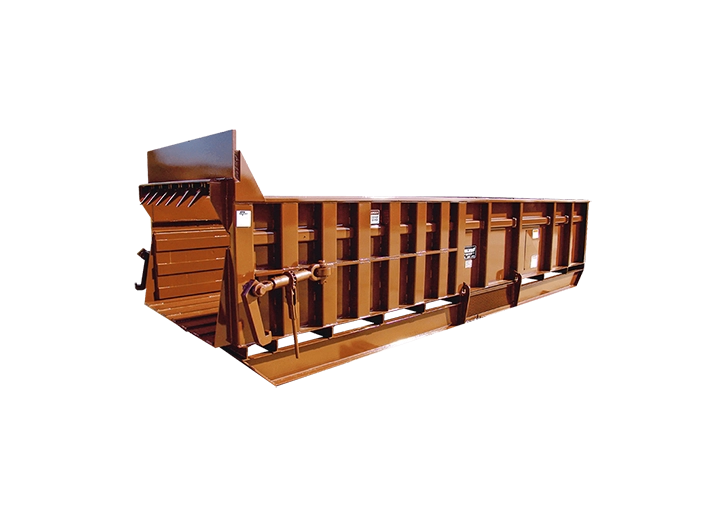

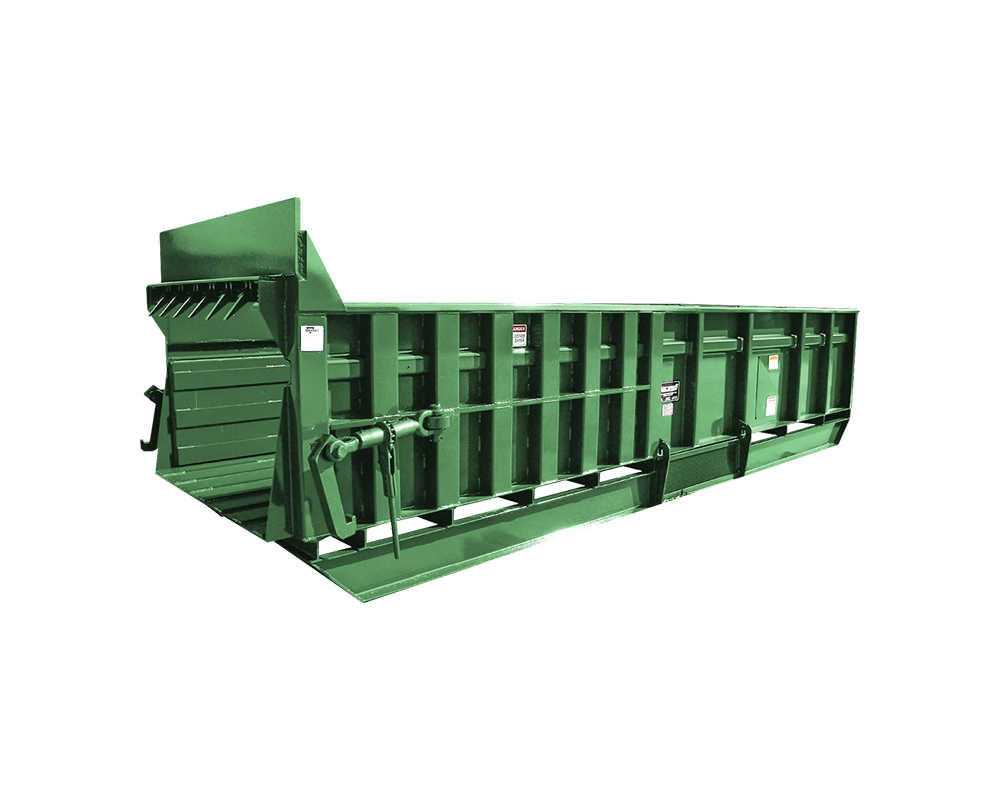

Marathon RamJet RJ-575HD Stationary Trash Compactors are high capacity, heavy-duty trash compactors, ideal for industrial and commercial applications where large volumes of solid waste are generated. Its rugged construction and large hydraulic power unit allow maximum compaction performance. The RJ-575HD stationary trash compactor features a large 95″ by 59 1/2″ clear top opening to accommodate oversized crates and cartons.
Engineered for Durability
The high-capacity 5.5 cubic yard RJ-575HD stationary trash compactor is ideal for heavy industrial applications. The large hydraulic power unit and oversized clear top opening make it well suited for compacting high volumes of pallets, crates, and other bulky solid wastes.
RJ-575HD Series Benefits
- Designed to handle heavy-duty waste streams
- Ideal for small transfer stations or municipal drop-off centers
- Heavy-duty design and high-compaction force yield excellent volume reduction with MSW and limited amounts of C&D waste streams
- Large hydraulic power unit allows for maximum compactor performance
- Large 95″ x 59 1/2″ clear top opening accommodates oversized crates and cartons
- 4″ I-beam reinforcement throughout
- Heavy-duty ram with 3/4″ steel face plate and 3/8″ top
- Cast-iron ram guides for extended floor life
- Sides constructed from 1/4″ thick steel with 3/8″ liner plates
- 4″ by 5″ boxed channel vertical side supports
- Hefty 6″ by 8″ by 3/4″ angle breaker bar with 1″ by 12″ steel plate reinforcement that easily handles the beating of daily industrial trash.
- 96,000 lbs. maximum compaction force
Transfer Station Applications

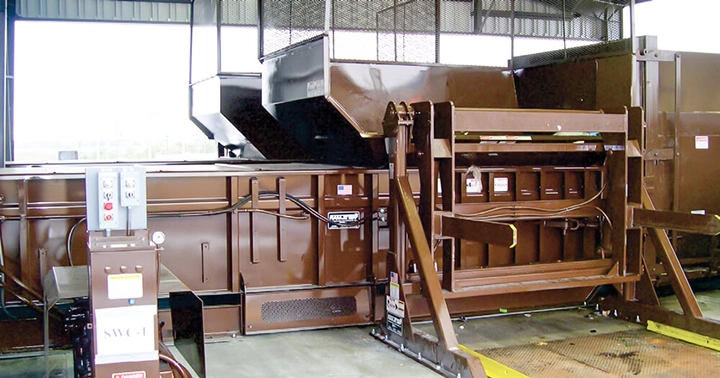

The RJ-575HD can be fitted with a variety of material handling equipment such as chutes, hoppers, and dumpers. The RJ-575HD shown is fitted with a side-fed hopper and a ground-level dumper. Cart dumpers can be custom built to your specifications to accommodate existing cart systems. The RJ-575HD is designed for transfer station applications for municipalities and private contractors. A conveniently located RJ-575HD transfer facility will eliminate the need for trips to the landfill by intermediate collection vehicles resulting in fuel, maintenance, and labor cost reductions. Compacting into large compaction containers or transfer trailers could also help to further reduce dumping fees.
Designed to handle heavy-duty waste streams
Large hydraulic power unit allows for maximum compactor performance.
Engineered For Durability
The high-capacity 5.5 cubic yard RJ-575HD is ideal for heavy industrial applications. The large hydraulic power unit and oversized clear top opening make it well suited for high volumes of pallets, crates, and other bulky solid wastes.
RAM Guide System
The packing ram is supported by specially formulated cast iron shoes which ride on replaceable wear strips. This exclusive design protects the charge box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.
High-compaction force yields excellent volume reduction with MSW and limited amounts C&D waste streams
Large Clear-Top Opening
Large 95″ x 59 1/2″ clear top opening accommodates oversized crates and cartons.
The RJ-575HD features an advanced, simplified three-button control system. It is key-operated, fully automatic, and contained in a weatherproof NEMA 4 enclosure. Connected to the power pack with 13′ of conduit, the controls can be located for operator convenience.
