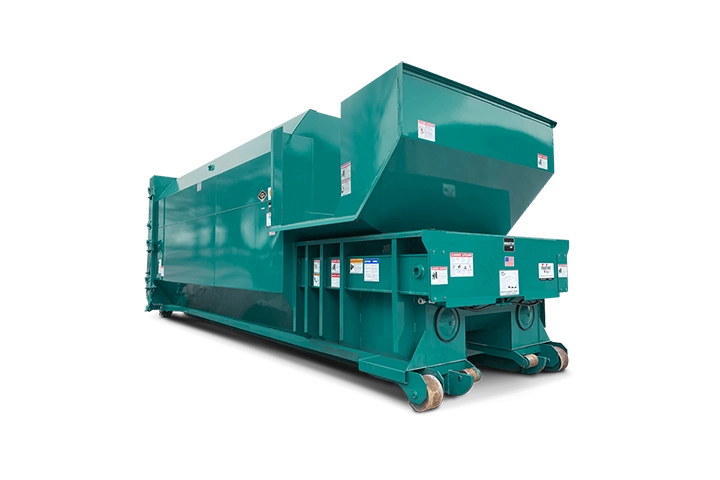

Marathon SC2 Self-Contained Roll-Off Trash Compactor
SC Self-Contained Roll-Off Trash Compactors
Marathon® RamJet SC units are state-of-the-art in roll-off self-contained trash compactors, featuring large feed openings and expanded container storage capacity. They are designed to optimize safety for workers, store and transport your waste, prevent contamination of public areas in accordance with public health department requirements, improve working conditions for your employees, and reduce disposal costs. Marathon SC2 trash compactors can be customized with a variety of loading arrangements and options to suit your specific needs.
Benefits:
- Great for waste with high liquid content
- New packer head design raises cylinders to a higher parallel position, away from harmful, abrasive waste, and liquid
- Heavy-Duty Wiper and Drag Plate, plus standard 1/2″ Packer Floor improvements greatly increase the life of the compactor
- New packer head design has 50% fewer internal hydraulic hoses, which reduces maintenance and repair costs
- Deck heights of 44″ and 48″ allow for easy loading from either ground or dock level
- Clean-outs behind the ram and rear cylinder pin access are both easily accessible from outside the compactor body at ground level
- 40 1/2″ x 56 1/2″ feed opening to handle large, bulky items
- Continuous feeding capability — even while the compactor is operating
- Adaptable to special loading systems, such as large-capacity hoppers, security chutes, or total enclosures
- Odor and pest control from the Marathon Ozone Odor Control options
- Up to 25 tons of crushing force to reduce refuse to a fraction of its former size, saving valuable space and reducing your number of hauls
Compactor Features
New Packer Head Design
New packer head design raises cylinders to a higher parallel position, away from harmful, abrasive waste, and liquid. Additionally, the head design has 50% fewer internal hydraulic hoses, which reduces maintenance and repair costs.
Easy Loading
Deck heights of 44″ and 48″ allow for easy loading from either ground or dock level.
Large Feed Opening
40 1 /2″ x 56 1 /2″ feed opening to handle large, bulky items.
Very Adaptable
Adaptable to special loading systems, such as large-capacity hoppers, security chutes, or total enclosures.
Incredible Crushing Force
Up to 25 tons of crushing force to reduce refuse to a fraction of its former size, saving valuable space and reducing your number of hauls.

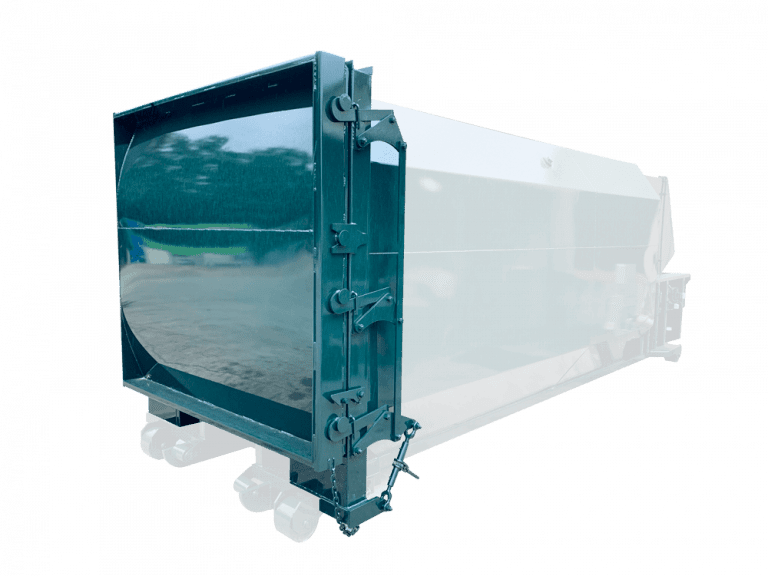

Double-Hinge Bronze Brushing
Every unit is tested for watertightness before leaving the factory. Liquid retention is ensured by the incredible double-hinge. It creates uniform seal compression while eliminating the seal “scrubbing” and damage so often encountered with competitive designs. The double-hinge also saves expensive driver and truck time because only one easy-to-operate ratchet is required to make it work.

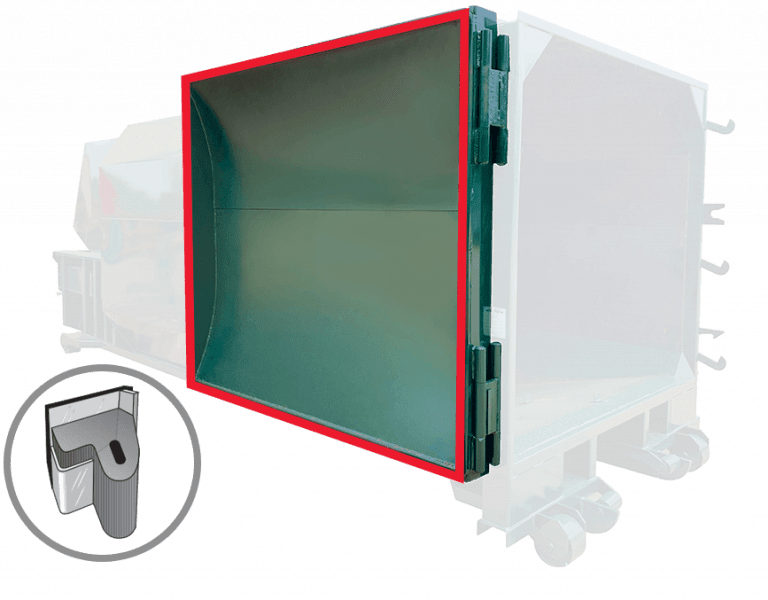

Bubble Gate
The innovative “Bubble Gate” adds a full cubic yard to container capacity. Superior compaction ratios result from its special curved shape. These two unique benefits reduce the costs of hauling.

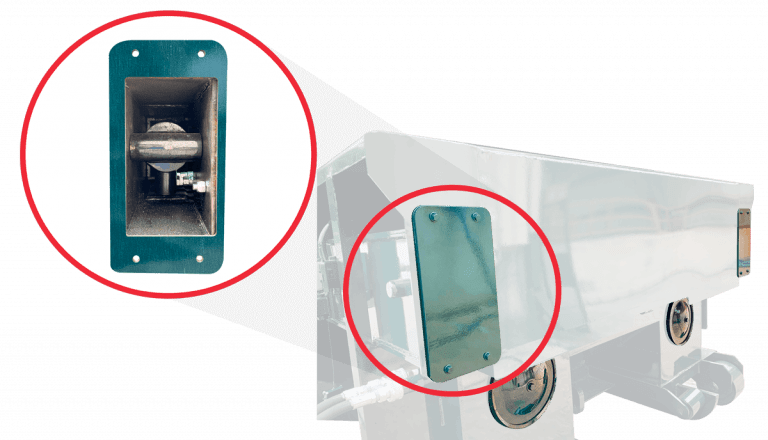

Rear Access for Quick Cleaning
Open and uncluttered compartment combined with a flat floor and quick removal cleaning ports will save time and facilitate more frequent cleaning, extending the life of internal components. Newly designed cylinders also allow for easy removal at the rear of the compactor.
Heavy Duty Wiper and Drag Plate
Heavy-Duty Wiper and Drag Plate plus standard 1/2″ Packer Floor improvements greatly increase the life of the compactor.
Accessible Cleanouts
Clean-outs behind the ram and rear cylinder pin access are both easily accessible from outside the compactor body at ground level.
Continuous Cleaning
Continuous feeding capability — even while the compactor is operating.
Odor and Pests Options
Odor and pest control from the Marathon Ozone Odor Control options
P-Seal Watertight Closure
The P-shaped Door Seal is specially designed for portable compaction containers to provide a superior watertight closure. The mounting is engineered for quick and easy installation when replacement is necessary, requiring no field fitting, cutting, or welding.
Auto Relatch
The ultimate in latch systems, the “Auto Relatch” eliminates the need to hold the door while operating the latch ratchet. This design enables the operator to use both hands on the ratchet, and prevents the door from swinging out inadvertently.
Remote Power Pack
Separate from the compactor/container, the Marathon Remote Power Pack remains free of damage caused during hauling to and from disposal sites and free of problems caused by landfill dust. Two simple-to-use, hydraulic quick-disconnect fittings couple the power unit to the packing head. All Marathon Remote Power Packs are built in-house to our quality standards and each unit must pass a series of stringent tests before it can be shipped with the selected compactor.
Improved Fixed Cylinder-Pin Mounting
The redesigned non-rotating cylinders are raised 18″ off the floor to move them further away from any accumulated liquid and debris. Fixed cylinder body, plumbing, and pins are housed in the side pockets, eliminating the need for movement or rotation. This redesign also allows for fewer hoses, which reduces maintenance and repair costs.
Additional Information
Spec Sheet
