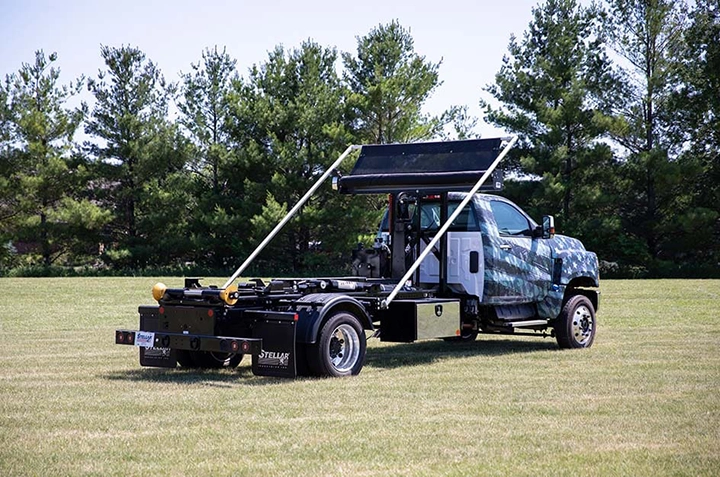

Stellar NXT18 Hooklift


Featuring next-level design and a best-in-class 7.5″ lost load height, the powerful 18,000-lb-capacity Stellar® NXT18 Hooklift handles 8′ – 14′ bodies for 108″ – 120″ CA chassis. For maximum compatibility and flexibility, the bolt-on body lock system provides universal adjustment for either inside or outside locks.


NXT18 Hooklift Benefits

  • Manual adjustable hook height: Set the hook height to match the lift bar height of a fleet of containers.
  • Compact secondary design: A lost load height of 7.5″ when combined with the dump section creates a double pivot, allowing a lower below-grade hook bar approach. Accommodates down to 4″ subframe heights.
  • Wear pad design: Integrated replaceable wear pads for easier serviceability.
  • Lift cylinders: The integrated soft-stop feature brings the body to rest gently on the body saddles, and the speed enhancement system for cylinder extension cuts cycle time by up to 30%.
  • Electronic controls: Programmable logic provides precision hook deployment, and the radio remote control transmitter delivers easy, handheld operation control.
  • Hydraulic reservoir: The universal mounting bracket lets you place the 8-gallon reservoir where you want it: top mount at the bulkhead or along the chassis frame, or on either side of the unit.


Hooklift Features

Z-rail Design

The base is pre-drilled to allow for efficient installation on the chassis and to allow body saddles to be installed where needed.

Dump Section

Integrated body lock mounting holes on the dump section eliminate the need to cut off and weld on locks.

Telescopic Jib

Multiplate design provides a lightweight yet sound structure for handling a wide range of body lengths.

Universal Latching System

The industry-leading bolt-on adjustable body locks provide specific adjustments of either inside or outside locks.
