DROP FRAME FLEXIBILITY, BECAUSE EVERY ROUTE IS DIFFERENT

The most versatile waste collection vehicle available, the Labrie Expert can be used for manual, semi-automated or fully automated collection.

MANUAL OR SEMI-AUTOMATED COLLECTION

The proprietary drop frame chassis modification engineered and performed in house is perfect for manual or semi-automated waste or recycling collection and the loading height of only 5.5″ above the chassis frame makes this configuration safer, faster, and easier to load.

THE HELPING HAND ARM

The Helping Hand™ arm’s pivot point provides minimal swing out, which is perfect for loading in places where operating room is limited, but can still extend up to 10 feet to make quick work of demanding routes.

IN-HOUSE DROP FRAME MODIFICATION

Labrie™ is the only manufacturer that performs the drop frame modifications process internally. Unlike other manufacturers that outsource this task to third-party providers, we have direct control over the process, which ultimately benefits our clients in numerous ways.

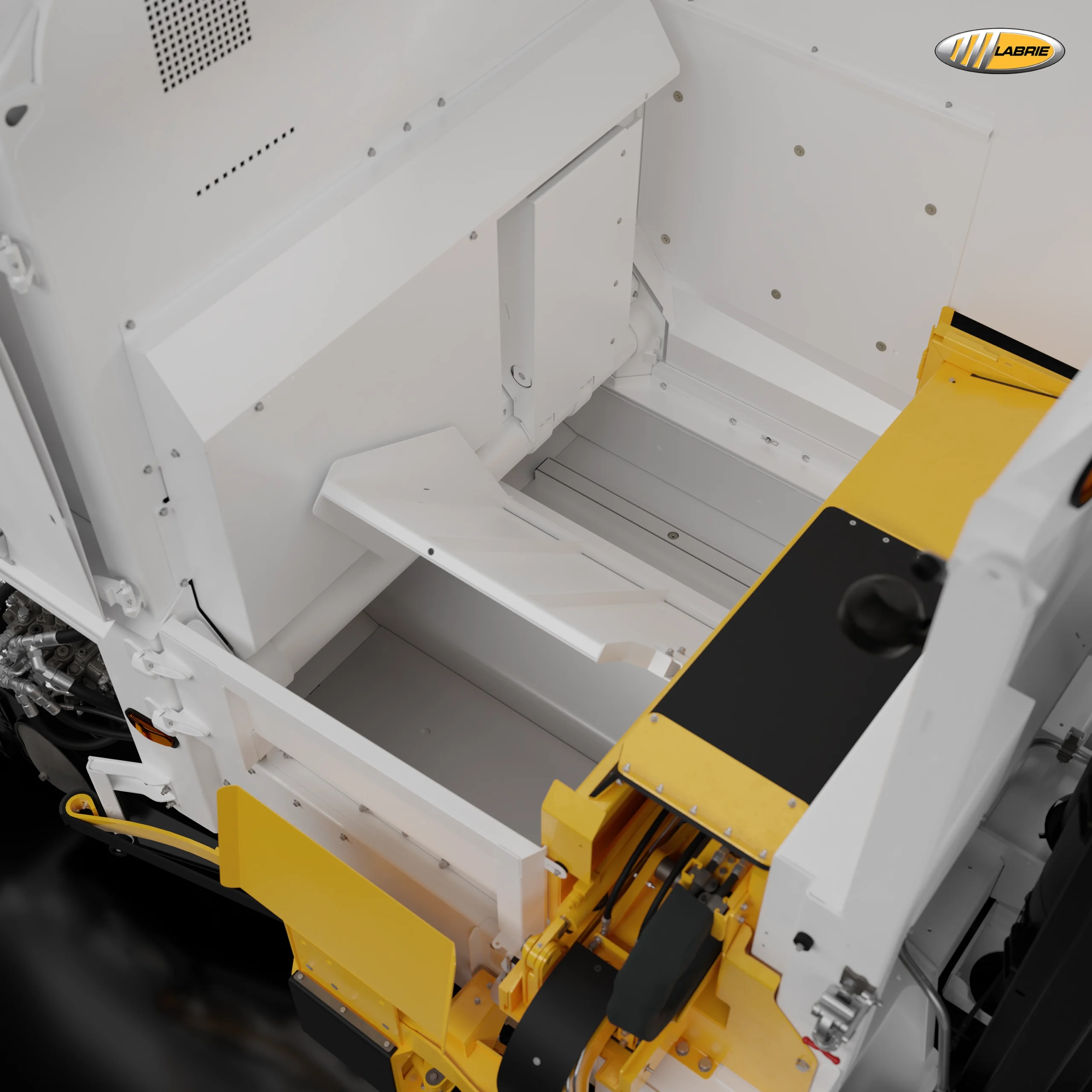

SINGLE OR SPLIT CHUTE INSIDE THE HOPPER

The versatility that this split design offers is essential when maximizing payload and adapting route diversion rates. The body comes in a 50/50, 40/60, or 60/40-split configuration, which can be combined with one of 8 body sizes to choose from. Controlled by a hydraulic cylinder, the hopper chute can be re-configured on-the-go from within the cab.

CNG POWERED

The need for alternative energy is real. Meet that need with Labrie’s proprietary CNG System. For thoroughly engineered alternative energy solutions, the answer is always Labrie.

SPECIFICATIONS

• 15 yd³ to 37yd³ body sizes available
• Arm with 10′ reach* & 400 lb lifting capacity
• Tapered body for effortless unloading
• 50/50, 40/60 or 60/40 split body configurations available
• Manual, semi-automated or fully automated
